Concrete mixer introduction of large HZS180 concrete batchin

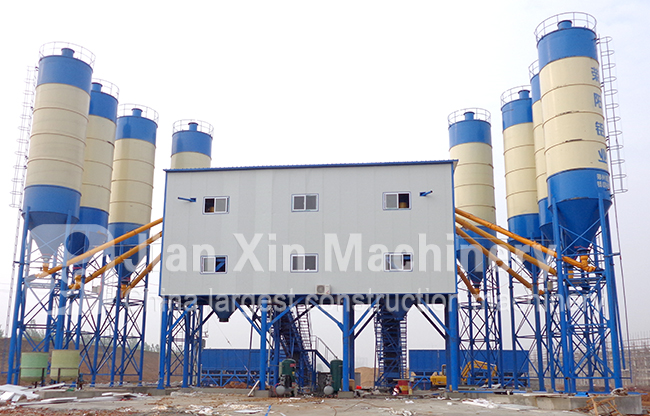

HZS180 concrete batching plant can produce 180 cubic meters of concrete per hour. With the JS3000 forced mixer as a the main mixer, and batching machines, control system, cement silo, weighing and pneumatic systems as corollary equipments. Concrete mixer is the core equipment of a concrete batching plant and plays an important role in the entire production line.

Jianxin chooses the JS3000 concrete mixer to enhance the inherent performance of the product. This machine uses a unique intelligent lubrication system to optimize the design. The hydraulic discharge door adopts segment feeding, prevents clogging during discharge, and the discharge door has automatic/manual model for select, which can be manually opened under power failure and other emergency failures. When the JS3000 mixer is working, the transmission mechanism drives the two stirring shafts to rotate synchronously and reversely. Each stirring shaft has 8 stirring arms and two pairs of side stirring arms. The stirring blades and the scraper are arranged on the stirring shaft. After the materials are put into the mixer, the mixture moves radially and axially in the middle of the tank through the agitation of coarse and fine aggregates and admixtures by stirring blades and scrapper. And then forming convection in the intersecting area between the two agitating shafts to realize the strong stirring of the material. Jianxin HZS90, HZS120, HZS180 and other large-scale environmental protection batching plant have accumulated more than 30 years of industry experience, and introduced foreign advanced technology to the equipment innovations.
