How much is the power consumption of HZS120 concrete batchin

As a large-scale mechanical equipment, the overall power consumption of concrete batching plant equipment is also a concern for many users. Most of today's concrete batching plant equipment is driven by electricity, and a very small number of mixers use diesel engines. The power consumption of the equipment determines the electricity cost. To understand how much power consumption is used per hour of a set of HZS120 concrete batching plant, it is necessary to figure out the total power of the equipment.

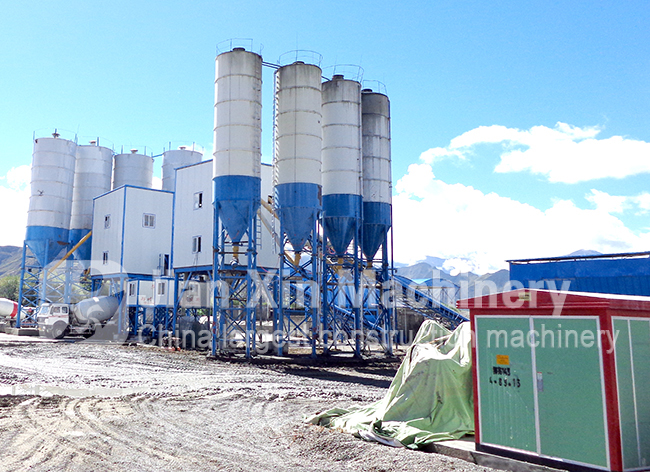

The entire HZS120 concrete batching plant include twin-horizontal shaft mixers, batching machines, cement silos, conveyors, and computer control rooms. It requires multiple systems to work together to achieve automated batching of concrete. The power of the prepared JS2000 twin-shaft mixer is 74KW (37*2), the batching machine is PLD3200, and the power is 11KW. Together with the four screw conveyors equipped in the cement silo, the total power is approximately 60KW. If you do not consider some equipment with low power consumption such as the control system, it can be concluded that the total power of HZS120 concrete batching plant equipment is about 145KW.
With a known total power of 145 kW, it can be deduced that 145 kWh is needed per hour. Of course, with the large power, the output is naturally high. Users can select the model of the concrete batching plant equipment according to actual needs.
